What is the FSQ-106ED ?



The FSQ-106ED is a flat-field f/5 imaging and visual astrograph; the successor to the legendary FSQ-106(N), employs a modified advanced Petzval design of 4 elements in 4 group, two of which are ED (Extra low Dispersion) glass to provide superior color correction.









FSQ-ED Characteristics



The FSQ-ED utilized the design technology of the ED lens which was cultivated in the TOA series.  Aberrations were well revised with an objective lens constructed of 4 lenses including two ED lenses so the FSQ capabilities were exceeded photographically.

*    Improved Color Correction

As a result of using to high performance ED glass elements, and by positioning the G3 element close to the G2 element, the FSQ-106ED has dramatically improved correction for color and spherical aberration. The new design corrects color for over wide range from the near ultra-violet to the near infra-red, 400nm to 1000nm, which makes the FSQ-106ED the perfect imaging platform.

*    Improved Illumination

The new design increased the size of the G3 element by 50% and placed it close to the G2 element. The result is an increase in field illumination of 20 % for a 35mm frame, 33% for a 70mm Ø image circle and 34% for the 88mm Ø image circle, a great improvement over the standard Petzval design.

*    Improved High Magnification

The new Extender-QE 1.6X was designed to take advantage of the new capabilities of the FSQ-106ED design. The new 50.8mm (2") five element corrector, flattener and extender increases the focal length from 530mm f/5 to 850mm f/8 flawlessly. The correction provided by the Extender-QE allows the highest possible magnification to be used. The 30% increase in color correction provided by the Extender-QE produces diffraction limited images at high and low magnification.

*    Reducer-QE 0.73X

This newly designed f/3.6 dedicated reducer for the FSQ-106ED is a 4 element in 3 group 0.73X accessory. The Reducer-QE maintains the same high level of color correction and field flatness produced by the FSQ-106ED at its native f/5 focal ratio. It was designed to be used with digital SLR's and CCD cameras.

*    Enhanced Back Focus

The FSQ-106ED has been designed with a back focus of 178mm. This enhanced back focus will allow the imager or observer to use any combination of CCD camera, binoviewer or diagonal with their FSQ-106ED. The standard accessories include a prime focus tube, compression ring 50.8mm (2") and 31.7mm (1 1/4") adapters for maximum flexibility.










FSQ SERIES





1999/6: The new product FSQ-106 tube announcement (106-530). Modified Petzval desing, 4 lenses / 2 Fluorite.

2000/6: New product FSQ-106N (Kai) tube announcement (106-530), lens shade becomes sliding system.

2007/1/30: New product FSQ-106ED tube announcement (106-530). Modified Petzval desing, 4 lenses / 2 ED.

2008/4/18: New product FSQ-85ED tube announcement (85-450). Modified Petzval desing, 4 lenses / 2 ED.

2014/12/05: New product FSQ-130ED tube announcement (130-650). Modified Petzval desing, 5 lenses / 3 ED.











Model



Aperture

(mm)



Focal Length

f Ratio Lt Grasp Resolution



Limit

Mag



Tube OD

(mm)





Tube Length

(mm)





Weight

(kg)



Image  Circle

(mm)



Image Field

(degrees)



Dew Shield

 OD (mm)

FSQ-106(N)

106 530 / 850 5 / 8 229X 1.09" 11.9 114 650-560 6.3 88 / 44 9.5 / 3 145

FSQ-85ED

85 450 / 327 / 680 5.3 / 3.8 / 8 147X 1.36" 11.4 95 615-525 3.8 60 / 44 / 44  5.6 / 7 / 114

FSQ-106ED

106 530 / 387/ 850 5 / 3.65 / 8 220X 1.09" 11.8 125 675-580 7.0 88 / 44 / 44 9.5 / 6.5 / 3 145

FSQ-130ED

130 650 / 455 / 1000 5 / 3.5 / 8 345X 0.89" 12.3 156 830-700 12.7 110 / 70 / 44   179
















FSQ-106ED



























FSQ-106ED with Reducer-QE 073X and Extender-Q 1.6X




























Takahashi FSQ-130ED









Primary Focus

Aperture : 130mm

Focal length : 650mm

Focal ratio : F/5

Optical design : Flatfield Super Quintuplet apochromat

Coating : Broadband multi-layer anti-reflection coatings

Image circle : 110mm diameter (illumination60%)

Optical performance : Off-axis distance (mm) 0 15 22 32 44 55
RMS-spot diameter (micron) 2.0 3.0 4.0 4.5 8.0 17
Relative illumination (%) 100 99 97 92 78 60



With New 645 Reducer 0.7x

Focal length : 455mm

Focal ratio : F/3.5

Image circle : 70mm diameter (illuminaton 60%)

Optical performance : Off-axis distance (mm) 0 15 22 32
RMS-spot diameter (micron) 2.5 3.0 4.0 5.0
Relative illumination (%) 100 96 90 60


With RD-QE0.73X

Focal length : 474mm

Focal ratio : F/3.6

Image circle : 44mm diameter (illumination 60%)

Optical performance : Off-axis distance (mm) 0 15 22
RMS-spot diameter (micron) 3.0 5.0 14
Relative illumination (%) 100 90 65


With EX-ED1.5X

Focal length : 982mm

Focal ratio : F/7.5

Image circle : 44mm diameter (illumination 60%)

Optical performance : Off-axis distance (mm) 0 15 22
RMS-spot diameter (micron) 2.0 15 30
Relative illumination (%) 100 80 65


With EXQ-1.6X

Focal length : 1043mm

Focal ratio : F/8

Image circle : 44mm diameter (illumination 60%)

Optical performance : Off-axis distance (mm) 0 15 22
RMS-spot diameter (micron) 4.0 8.0 10
Relative illumination (%) 100 75 58



FSQ-130ED

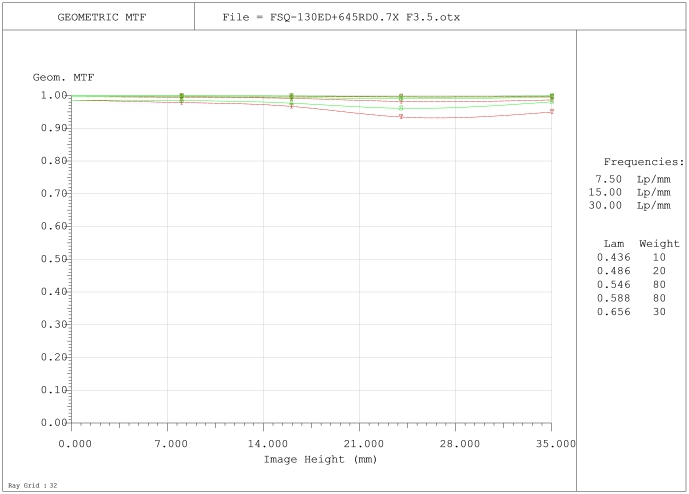

FSQ-130ED 645RD0.7X


















Takahashi FSQ-85ED









FSQ-85ED
























Takahashi FSQ-106N
